1. System Overview

The Bridge Protection and Traffic Flow Investigation System was independently developed by Zhengzhou Hengliang Technology Co., Ltd. This system addresses the practical needs of bridge dynamic load monitoring, combining high-precision sensors and advanced data processing technology to provide a comprehensive solution for monitoring loads on various types of bridges.

The monitoring system mainly consists of the following parts:

A. Sensor Subsystem:The bridge dynamic load monitoring system uses high-precision quartz sensors to capture the tiny deformations or stress changes in the bridge caused by vehicles passing through it.

B. Data Acquisition and Processing System:

The data acquisition system receives raw signals from sensors, filters and amplifies them, and converts them into data using high-speed analog-to-digital converters. The processing system then processes the data and extracts vehicle-related information based on algorithms. This information includes lane number, gross weight, traffic volume, number of axles, wheelbase, weight per wheel, single axle, tandem, and triplex axle, as well as vehicle speed, vehicle model, direction, time of day, and lane crossing markers.

C. Data Transmission and Communication System:

After the data processing system completes initial data processing, this data needs to be transmitted via Ethernet to a remote data center or monitoring center. For some application scenarios where Ethernet communication is not available, direct 4G transmission to the data center can be used.

D. Data Analysis and Monitoring Software:

In the data center or monitoring center, data analysis software further processes and analyzes the received data, including functions such as vehicle identification, weight calculation, axle count, and overload detection.

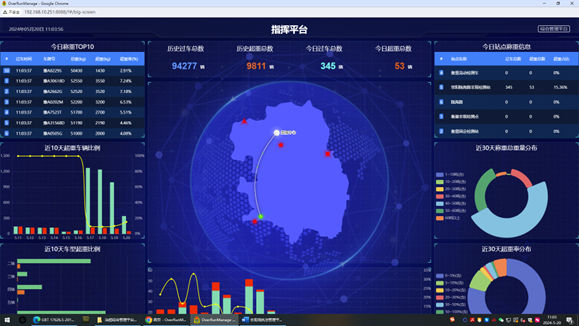

The monitoring software provides a user interface, allowing operators to view bridge load conditions in real time and receive alerts for overload or other abnormal conditions.

2. System Details

2.1. Quartz Sensors

In the bridge dynamic load monitoring system, the weighing sensor is the most core component and has the most direct impact on the actual operation effect of the system. The quartz weighing sensor independently developed by us can be installed directly on the asphalt pavement. Compared with traditional quartz sensors, it greatly reduces the requirements for installation pavement. At the same time, compared with other types of sensors, it has great advantages in weighing accuracy, reliability, maintainability and other aspects.

The advantages of the quartz sensors developed by our company compared with piezoelectric film sensors and bending plate sensors are:

Parameters	Quartz Sensor HL-S-0Z70(SE)	Piezoelectric film sensor	Bending plate sensor
Sensor size	15004735mm	35006.6 1.6mm	125050020mm
	17504735mm	45006.61.6mm	150023030mm
	20004735mm		175050823mm
	Other specifications within 2m can be customized
Road damage condition	0.25 ㎡	0.14 ㎡	1.25 ㎡
Accuracy	90%	≤85%	90%
Temperature impact	Low	High	Low
Construction difficulty	Easy (asphalt pavement installation)	Easy (asphalt pavement installation)	Complex, requires road repair
Reliability	High (directly buried in the road)	High (directly buried in the road)	Poor road surface connection
Service life	≥100 million axles	40 million axles	30 million axles
Maintainability	Low	Middle	High

2.2. Weighing Controller

The Weighing controller utilizes a highly integrated design concept, innovatively integrating the charge amplifier, loop controller, and weighing controller into a single unit. This effectively solves issues associated with complex weighing system deployment and tedious wiring.The weighing host's 8.8-inch high-resolution touchscreen further enhances its interactivity. Built-in functions include sensor status management, real-time internal code display, coefficient calibration etc., providing a comprehensive application experience and results for field applications.

The bridge load weighing controller has the following functions:

1. Signal Processing

The bridge load weighing host computer has an integrated signal amplifier that filters and amplifies sensor signals.

2. Data Acquisition

The system collects load cell signals, senses the pressure of vehicles passing over the bridge, and converts them into digital signals.

3. Data Processing

The system converts digital signals into key vehicle-related data based on specific algorithms and models.

4. Weight Calculation

Based on the processed data, the system calculates key information such as vehicle weight according to pre-set algorithms and models.

5. Data Logging

The system records the calculated vehicle weight data for subsequent analysis and statistics.

6. Data Display

The system displays vehicle weight, traffic flow, and other related information in real time on a display screen.

7. Data Upload

The weighing host computer uploads data to a data center in real time via Ethernet/4G.

2.3. Application System

The main functions of the Bridge Load Monitoring Application System are as follows:

A. The bridge load monitoring system receives real-time data on vehicle weight, number of axles, wheelbase, traffic volume, vehicle type, speed, etc., automatically compiles and analyzes the data, and provides monthly, quarterly, and annual traffic load and flow reports.

B. Monitor vehicle load and information, identify overloaded vehicles in real time, and support automatic alarm and automatic event information warning functions.

C. Monitor bridge traffic loads and identify the relationship between load changes and changes in overall bridge deformation and girder deflection, providing a basis for establishing a bridge traffic load model and conducting maintenance work.

D. Based on real-time monitoring of bridge loads and comparing them with design loads or safety limits, the system will immediately issue a warning signal if the actual load exceeds the design load or safety limit, prompting management to take appropriate measures to prevent damage or collapse of the bridge due to overloading.

E. Based on real-time load data, management departments can develop more precise maintenance plans. For example, inspections and maintenance efforts can be strengthened for sections of the bridge that frequently bear heavy loads, while inspections can be reduced for sections with lighter loads, thereby improving the efficiency and specificity of maintenance.

3. System Parameters

3.1. System Performance

The indicators of bridge dynamic load monitoring system are shown in the following table:

Item	Description
Accuracy	90%
Single axle load rating	40t
Maximum overload capacity of single axis	150%
Speed range	0.5～140km/h
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Operating voltage	AC 220V 50Hz
Output information	Speed, gross weight, axle weight, number of axles, wheelbase, vehicle type and time of passing
Display information	The system comes with an 8.8-inch LCD interactive screen for data display and data interaction
Extended lanes	4 Lanes
Data storage	Can store 100,000 records
Data Interface	RJ45 network port/4G
Work Environment	-45℃～80℃,0～95%
Confidence	≥95%

3.2. Quartz Sensor

Quartz sensor performance :

Item	Description
Model	HL-S-QZ70（SE）
Sensitivity	-1.54 ± 7% pC /N
Effect of temperature on zero point	±0.1 % FS/10℃
Effect of Temperature on Output Sensitivity	±0.2 % FS/10℃
Horizontal consistency	＜±5％
Linearity	＜±5% FS
Natural frequency	＞40KHz
Rated load	166 KN/m²
Maximum overload capacity	150%
Material	Aviation aluminum alloy + wear-resistant and grindable layer
Sensor cross-sectional dimensions	Width 35±3mm × Height 47±3mm
Grinding layer thickness	10~15 mm
Installation slot size	Width 65mm x Depth 65mm
Sensor length	1.5m, 1.75m, 2m(customizable within 2m)
Operating temperature range	-45℃～80℃
Insulation resistance	≥100GΩ
Service life	≥ 100 million axles times
Protection level	IP68

3.3. Weighing Controller

The performance indicators of weighing display are shown in the table below:

Model	HL-M-HS21(B)
Working voltage	AC 85V~265V 50Hz
Stable Current	＜1A
Accuracy	ClassⅤ
Number of Scales	n=3000
Division value	1/2/5/10/20/50kg
Max Number of Detection Channels	16 Channels
Network interface	RJ45 interface, UDP/TCP
Display	Resistive touch screen, 1920*480 resolution
Data Storage	Up to 400,000 pieces of vehicle information data can be stored in a circular manner
Working Environment	Temperature range -40℃～80℃, relative humidity range 0～95%
Storage Environment	Storage temperature 5℃～30℃, relative humidity <70%
Casing Material	Aluminum alloy housing
Dimensions	483111300 (lengthwidthheight)
