Direct Enforcement System Solution
Direct enforcement system solution mainly consists of a weighing subsystem, ANPR subsystem, an information release subsystem, a software management subsystem, a management platform subsystem, and an external dimension detection subsystem.
Direct Enforcement System (Quartz sensor type)
Direct Enforcement System (Flat Plate)

System Parameter

It can accurately calculate the speed of vehicles traveling at various speeds, effectively solving the impact of speed on weighing accuracy.

Accuracy Class
≥ 95%
Single Axle Rated Load
40T
Maximum Overload Capacity of Single Axle
150%
Speed Range
0.5~120km/h
Speed Error
≤±1km/h
Wheelbase Error
≤±100mm
Working Voltage
AC 220V 50Hz
Output Information
Speed, gross weight, axle weight, number of axles, wheelbase, vehicle type and passing time
Extension Lanes
8 lanes
Data Storage
Can store 40,000 pieces of data
Data Interface
RJ45
Working Environment
-45℃~80℃, 0~95%
Confidence Level
≥96%
Solution

System Feature

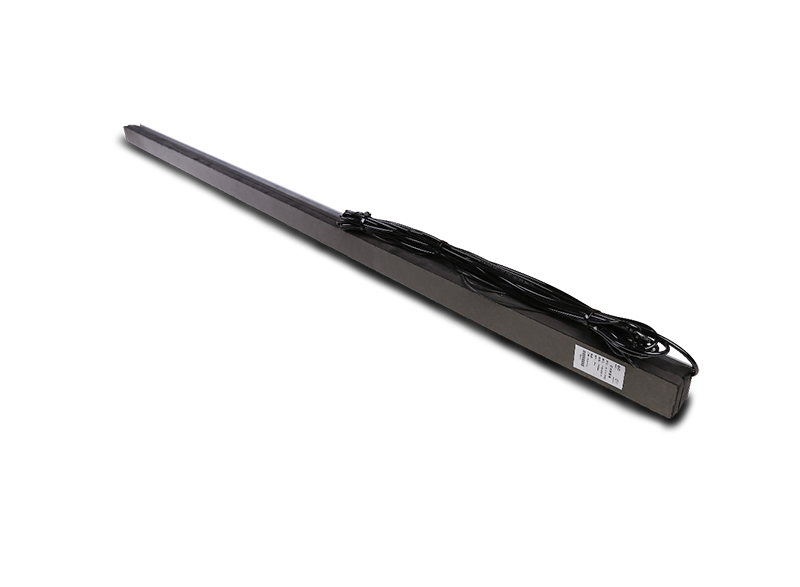

Based on innovative quartz piezoelectric technology, this system samples moving vehicle data at high speed, high density, and high precision, accurately calculating vehicle speed, axle weight, wheelbase, and other information. This system can accurately calculate at all speeds, effectively eliminating the impact of speed on weighing accuracy. Compared to traditional weighing platforms, this system offers advantages such as strong anti-interference capabilities, precise weighing, short construction cycles, easy maintenance, and weather-independent performance.
