Fixed Overload Control Station Solution
Build a truck inspection area at the overload station and install dynamic weighing quartz sensor, ANPR and road monitoring equipment, LED display and management computers, and external dimension detection (optional) and other related equipment.

System Parameter

Realize quick overload detection without stopping, automatically identify vehicle gross weight, vehicle number, vehicle dimensions, etc.

Accuracy
≥95%
Single Axle Rated Load
40t
Maximum Overload of Single Axle
150%
Speed Range
0.5~40km/h
Speed Error
≤±1km/h
Wheelbase Error
≤±100mm
Working Voltage
AC 220V 50Hz
Output Information
Speed, gross weight, axle weight, number of axles, wheelbase, vehicle type and passing time
Data Storage
Can store 40,000 pieces of data
Data Interface
RJ45
Working Environment
-45℃~80℃, 0~95%
Confidence Level
≥96%
Solution

System Feature

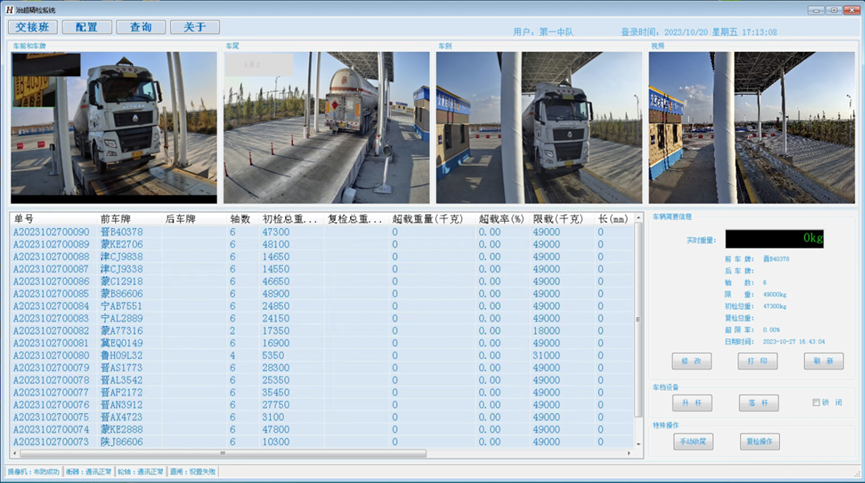

When a truck enters an overload detection station, it undergoes a non-stop, rapid inspection, automatically identifying the vehicle's gross weight, vehicle number, and external dimensions. The automated inspection system then displays a large screen alert indicating that the overloaded or overweight vehicle has entered the unloading area. Vehicles are monitored and recorded throughout the inspection area, facilitating law enforcement and evidence collection for violators.
